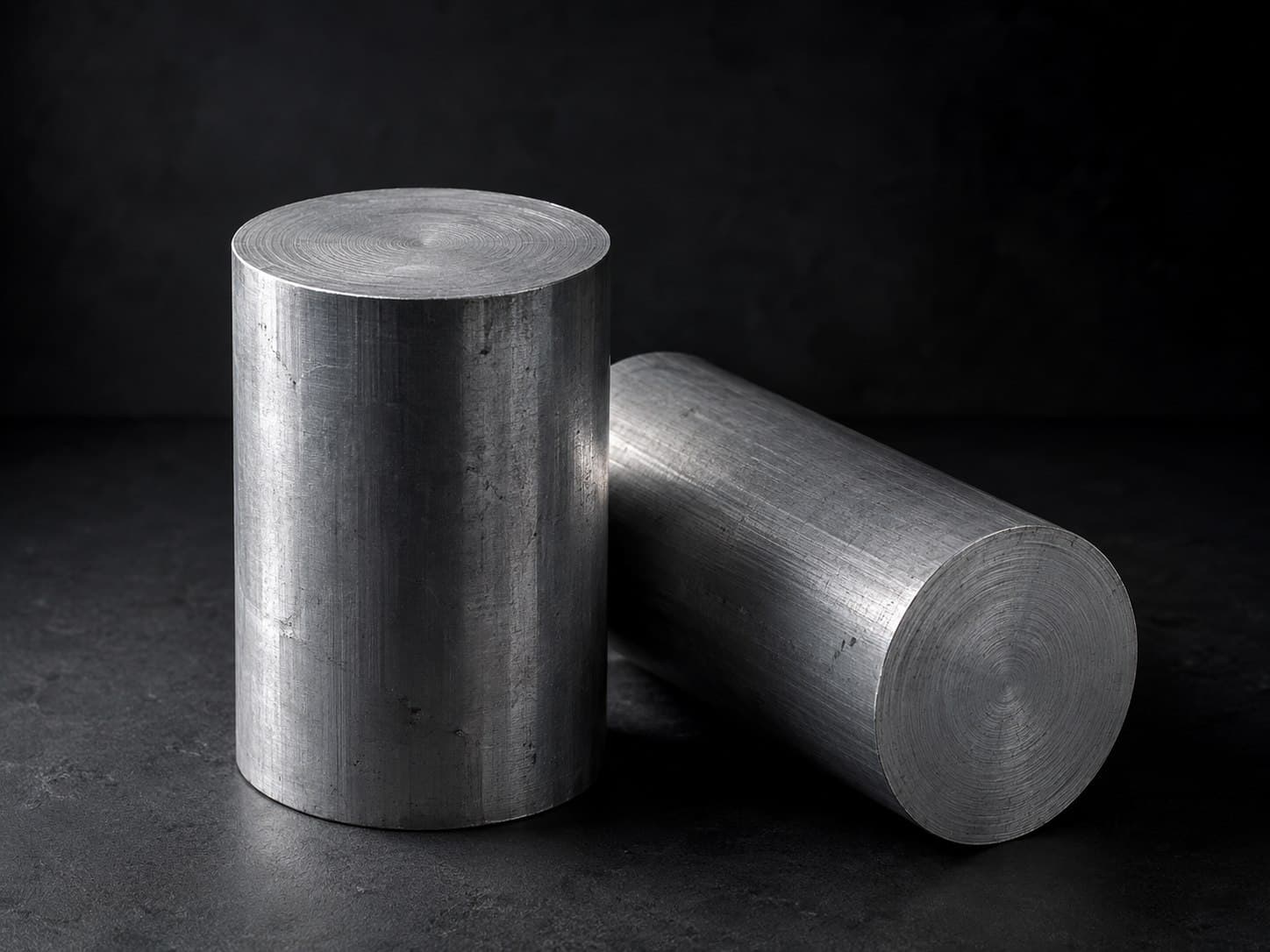

Billet solutions produced through our manufacturing network to our technical specifications and under our quality coordination. Full chemical composition tables for each of nine alloys.
In this range
6060-series alloy for architectural and general-purpose extrusion.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 0.51 | 0.18 | — | — | 0.51 | — | — | — |
| Max | 0.55 | 0.23 | 0.04 | 0.06 | 0.55 | 0.03 | 0.02 | 0.02 |
| Nom. | 0.53 | 0.21 | — | — | 0.54 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 0.51 | 0.55 | 0.53 |
| Fe | 0.18 | 0.23 | 0.21 |
| Cu | — | 0.04 | — |
| Mn | — | 0.06 | — |
| Mg | 0.51 | 0.55 | 0.54 |
| Zn | — | 0.03 | — |
| Ti | — | 0.02 | — |
| Cr | — | 0.02 | — |
Architectural profiles, general extrusion.
Lower-Mg 6060 alloy for architectural profiles.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 0.38 | 0.18 | — | — | 0.45 | — | — | — |
| Max | 0.43 | 0.23 | 0.04 | 0.06 | 0.53 | 0.03 | 0.02 | 0.02 |
| Nom. | 0.40 | 0.21 | — | — | 0.48 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 0.38 | 0.43 | 0.40 |
| Fe | 0.18 | 0.23 | 0.21 |
| Cu | — | 0.04 | — |
| Mn | — | 0.06 | — |
| Mg | 0.45 | 0.53 | 0.48 |
| Zn | — | 0.03 | — |
| Ti | — | 0.02 | — |
| Cr | — | 0.02 | — |
Architectural profiles, general extrusion.
6060 variant with a wider iron tolerance.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 0.38 | — | — | — | 0.45 | — | — | — |
| Max | 0.43 | 0.35 | 0.10 | 0.10 | 0.53 | 0.100 | 0.015 | 0.02 |
| Nom. | 0.40 | — | — | — | 0.48 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 0.38 | 0.43 | 0.40 |
| Fe | — | 0.35 | — |
| Cu | — | 0.10 | — |
| Mn | — | 0.10 | — |
| Mg | 0.45 | 0.53 | 0.48 |
| Zn | — | 0.100 | — |
| Ti | — | 0.015 | — |
| Cr | — | 0.02 | — |
Architectural profiles, general extrusion.
6082 alloy for structural, high-strength extrusion.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 1.00 | 0.18 | — | 0.70 | 0.80 | — | — | — |
| Max | 1.05 | 0.25 | 0.04 | 0.75 | 0.85 | 0.05 | 0.02 | 0.02 |
| Nom. | 1.03 | 0.22 | — | 0.73 | 0.83 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 1.00 | 1.05 | 1.03 |
| Fe | 0.18 | 0.25 | 0.22 |
| Cu | — | 0.04 | — |
| Mn | 0.70 | 0.75 | 0.73 |
| Mg | 0.80 | 0.85 | 0.83 |
| Zn | — | 0.05 | — |
| Ti | — | 0.02 | — |
| Cr | — | 0.02 | — |
Structural profiles, high-strength components.
6463 alloy for bright, anodisable decorative profiles.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 0.35 | 0.18 | 0.10 | — | 0.45 | — | — | — |
| Max | 0.39 | 0.21 | 0.15 | 0.04 | 0.49 | 0.03 | 0.02 | 0.01 |
| Nom. | 0.37 | 0.19 | — | — | 0.47 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 0.35 | 0.39 | 0.37 |
| Fe | 0.18 | 0.21 | 0.19 |
| Cu | 0.10 | 0.15 | — |
| Mn | — | 0.04 | — |
| Mg | 0.45 | 0.49 | 0.47 |
| Zn | — | 0.03 | — |
| Ti | — | 0.02 | — |
| Cr | — | 0.01 | — |
Decorative and bright / anodised profiles.
6005 alloy for structural profiles and tube.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr |
|---|---|---|---|---|---|---|---|---|
| Min | 0.68 | 0.17 | — | — | 0.50 | — | — | — |
| Max | 0.72 | 0.23 | 0.13 | 0.10 | 0.55 | 0.03 | 0.02 | 0.01 |
| Nom. | 0.70 | 0.21 | — | — | 0.53 | — | — | — |
| Element | Min | Max | Nom. |
|---|---|---|---|
| Si | 0.68 | 0.72 | 0.70 |
| Fe | 0.17 | 0.23 | 0.21 |
| Cu | — | 0.13 | — |
| Mn | — | 0.10 | — |
| Mg | 0.50 | 0.55 | 0.53 |
| Zn | — | 0.03 | — |
| Ti | — | 0.02 | — |
| Cr | — | 0.01 | — |
Structural profiles, tube, ladders and platforms.
The classic 6063 alloy for windows, doors and general architectural extrusion.
Ø 127 · 152 · 178 · 203 mm
| Element | Fe | Si | Cu | Mn | Mg | Zn | Cr | Ti | Other |
|---|---|---|---|---|---|---|---|---|---|
| Limit | 0.35 | 0.38–0.45 | 0.10 | 0.10 | 0.45–0.90 | 0.10 | 0.10 | 0.15 | 0.15 |
| Element | Limit |
|---|---|
| Fe | 0.35 |
| Si | 0.38–0.45 |
| Cu | 0.10 |
| Mn | 0.10 |
| Mg | 0.45–0.90 |
| Zn | 0.10 |
| Cr | 0.10 |
| Ti | 0.15 |
| Other | 0.15 |
Architectural profiles (windows / doors), general extrusion.
A works-specification alloy for structural and machined parts.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Pb | Sn | Na |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 0.54 | 0.14 | 0.20 | — | 0.83 | — | — | 0.06 | — | — | — |
| Max | 0.66 | 0.20 | 0.30 | 0.05 | 0.97 | 0.005 | 0.03 | 0.10 | 0.003 | 0.01 | 0.01 |
| Element | Min | Max |
|---|---|---|
| Si | 0.54 | 0.66 |
| Fe | 0.14 | 0.20 |
| Cu | 0.20 | 0.30 |
| Mn | — | 0.05 |
| Mg | 0.83 | 0.97 |
| Zn | — | 0.005 |
| Ti | — | 0.03 |
| Cr | 0.06 | 0.10 |
| Pb | — | 0.003 |
| Sn | — | 0.01 |
| Na | — | 0.01 |
Structural and machined components.
A works-specification alloy for specialised industrial applications.
Ø 127 · 152 · 178 · 203 mm
| Element | Si | Fe | Cu | Mn | Mg | Ti | Cr | Ni |
|---|---|---|---|---|---|---|---|---|
| Min | — | 0.10 | — | 0.95 | — | — | — | — |
| Max | 0.10 | 0.20 | 0.01 | 1.05 | 0.03 | 0.070 | 0.03 | 0.03 |
| Element | Min | Max |
|---|---|---|
| Si | — | 0.10 |
| Fe | 0.10 | 0.20 |
| Cu | — | 0.01 |
| Mn | 0.95 | 1.05 |
| Mg | — | 0.03 |
| Ti | — | 0.070 |
| Cr | — | 0.03 |
| Ni | — | 0.03 |
Specialised industrial applications.
Send your alloy, dimensions and quantity. We'll come back with LME-based pricing and lead time.
